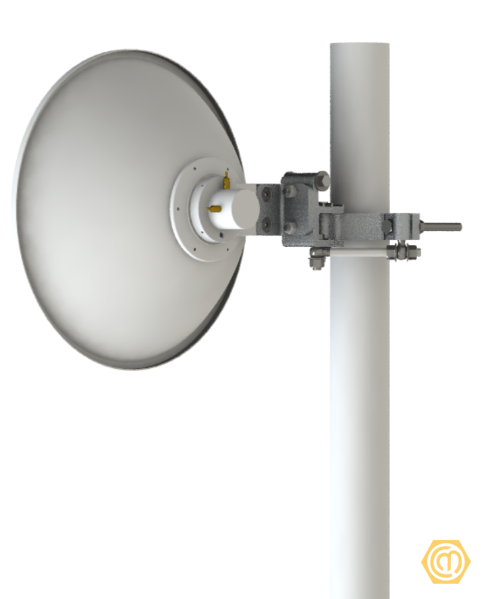

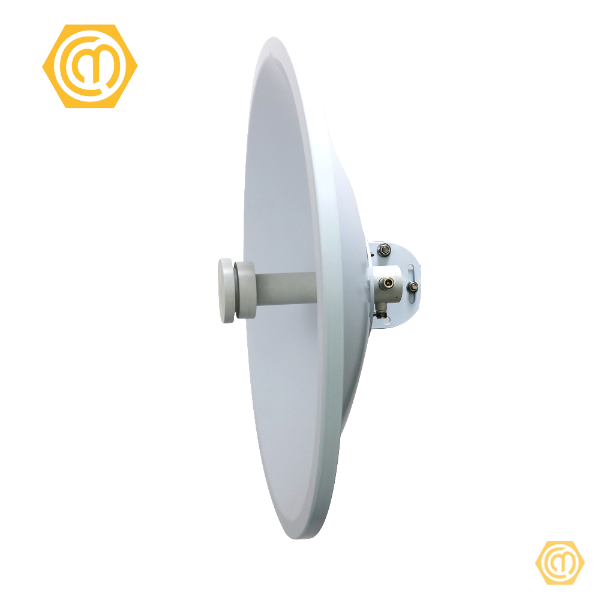

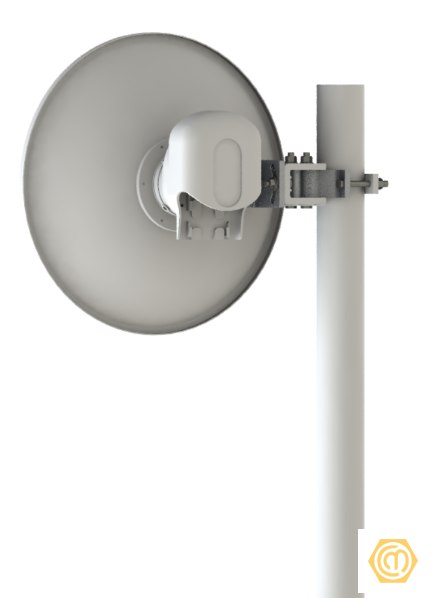

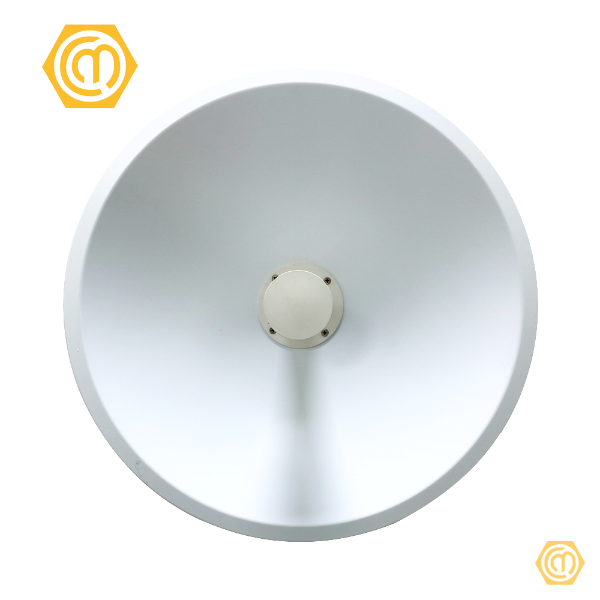

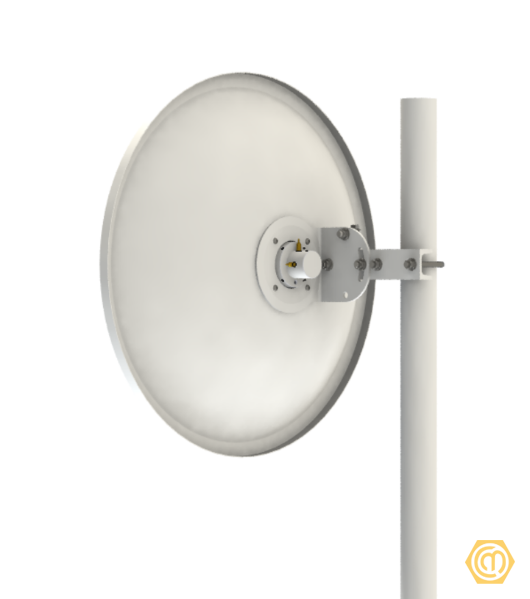

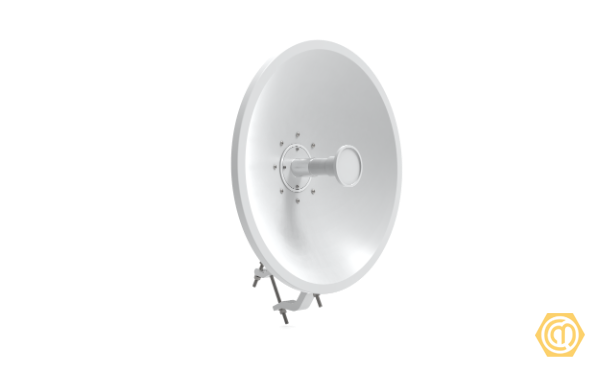

0.6m/2ft Class3 Dual-Polarized Antenna
Features:
- Stable gain over ultra-wide bandwidth of 5G and 6G
- Comes pre-assembled from the factory for quickest time to tower
- Includes radome ensuring robust and reliable performance under the most challenging condition
- Optimized F/B & side-lobe suppression minimizes interference
- Installs in minutes to reduce service calls and installation time
- Heavy-duty bracket with fine elevation and azimuth adjustment
- Heavy-duty hardware survives 250Km/h wind speeds
Electrical performance:
Antenna Model | Antenna Size(m/ft) | Frequency (GHz) | Gain(dBi) | 3dB BW (degs) | XPD (dB) | VSWR | F/B radio (dB) | ISO | ||
Low | Mid | Top | ||||||||
5G30 | 0.6/2ft | 5.0-7.0 | 30 | 6 | 25 | 1.7 | 40 | 30 | ||
CMP066WDA | 0.6m/2ft | 5.925-7.125 | 29.1 | 29.9 | 30.7 | 5.2 | 30 | 1.3 | 55 | 35 |
CMP067WDA | 0.6m/2ft | 7.125-8.5 | 30.7 | 31.5 | 32.2 | 4.3 | 30 | 1.3 | 56 | 35 |
CMP0610WDA | 0.6m/2ft | 10.0-11.7 | 33.6 | 34.3 | 35.0 | 3.0 | 30 | 1.3 | 59 | 35 |
CMP0613WDA | 0.6m/2ft | 12.2-13.25 | 35.3 | 35.7 | 36.1 | 2.6 | 30 | 1.3 | 60 | 35 |
CMP0615DA | 0.6m/2ft | 14.4-15.35 | 36.8 | 37.1 | 37.4 | 2.3 | 30 | 1.3 | 62 | 35 |
CMP0618DA | 0.6m/2ft | 17.7-19.7 | 38.6 | 39.1 | 39.5 | 1.8 | 30 | 1.3 | 64 | 35 |
CMP0623DA | 0.6m/2ft | 21.2-23.6 | 40.2 | 40.6 | 41.1 | 1.5 | 30 | 1.3 | 65 | 35 |
CMP0626DA | 0.6m/2ft | 24.2-26.5 | 41.3 | 41.7 | 42.1 | 1.3 | 30 | 1.3 | 67 | 35 |
CMP0628DA | 0.6m/2ft | 27.5-29.5 | 42.4 | 42.7 | 43.0 | 1.2 | 30 | 1.3 | 68 | 35 |
CMP0632DA | 0.6m/2ft | 31.8-33.4 | 43.7 | 43.9 | 44.1 | 1.0 | 30 | 1.3 | 69 | 35 |
CMP0638DA | 0.6m/2ft | 37.0-40.0 | 45.0 | 45.3 | 45.7 | 0.9 | 30 | 1.3 | 70 | 35 |
Mechanical performance:
Diameter of Mounting Pole | Φ51~Φ114 mm |
Fine Azimuth Adjustment | Coarse 360° Fine ±15° |
Fine Elevation Adjustment | Coarse ±25° Fine ±15° |
Wind Velocity Operational | 180km/h |
Wind Velocity Survival Rating | 250km/h |
Ice-load | 25.4 mm |
Operational Temperature | -55~ +70℃ |
